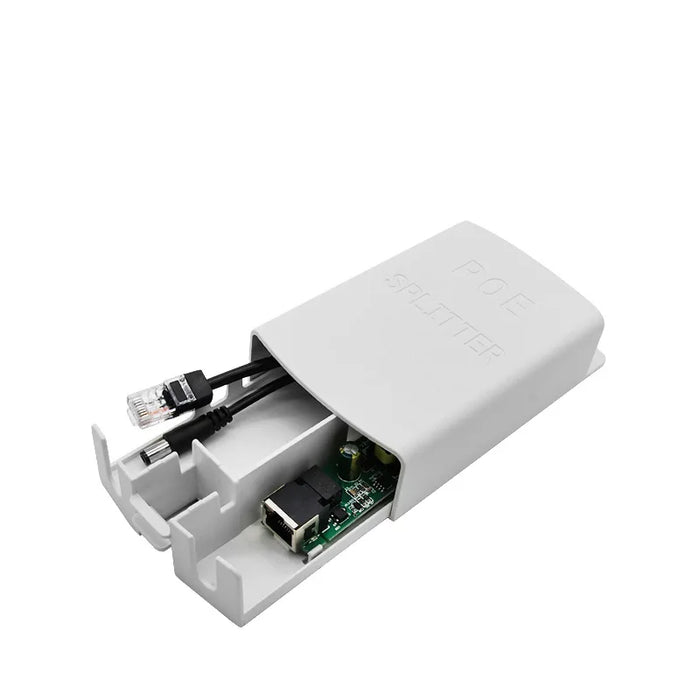

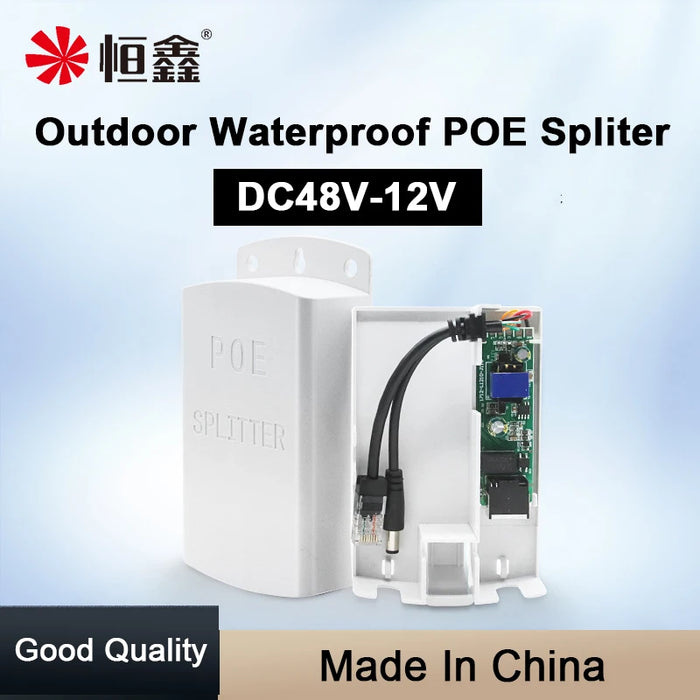

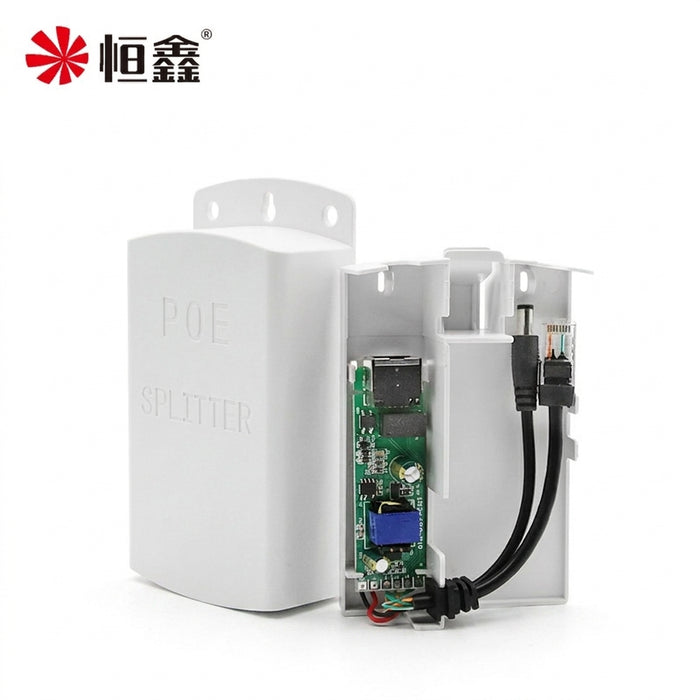

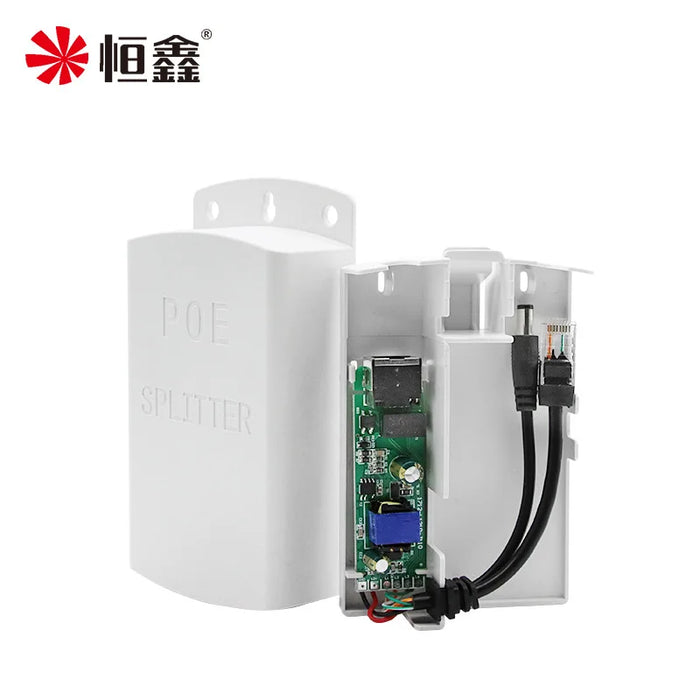

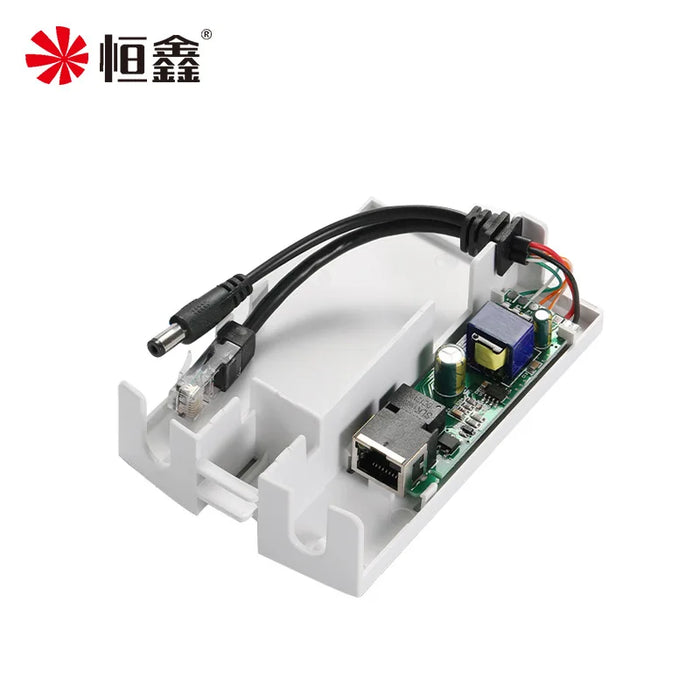

Waterproof Outdoor PoE Splitter 10/100Mbps — 48V to 12V (1.2A or 4A)

Overview

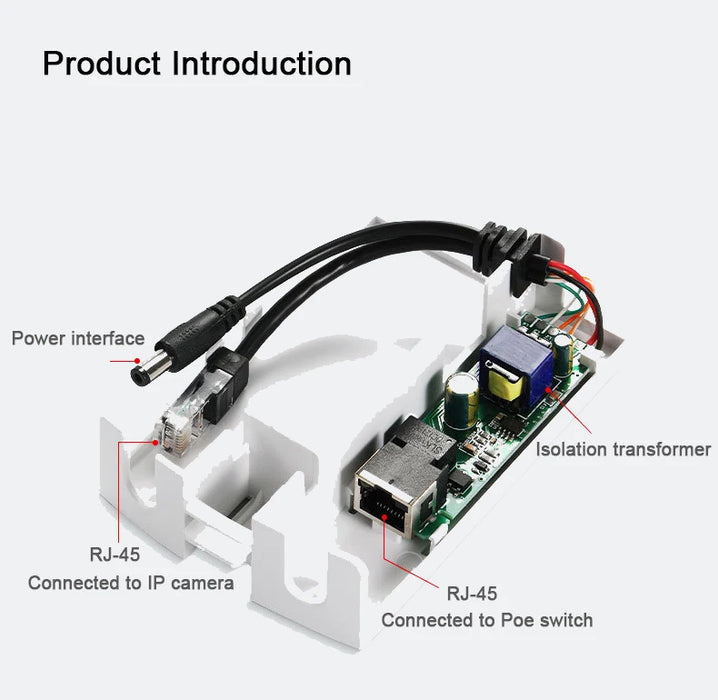

This PoE splitter separates data and power from an Ethernet cable to feed non‑PoE devices. It supports IEEE 802.3at and is compatible with 802.3af equipment, delivering 10/100Mbps network connectivity and DC12V output.

Features & protection

Choose between two output options: 12V at 1.2A (15.4W) or 12V at 4A (48W). The unit accepts a wide input voltage (40–57V) and includes isolation and lightning protection to reduce interference and guard connected equipment.

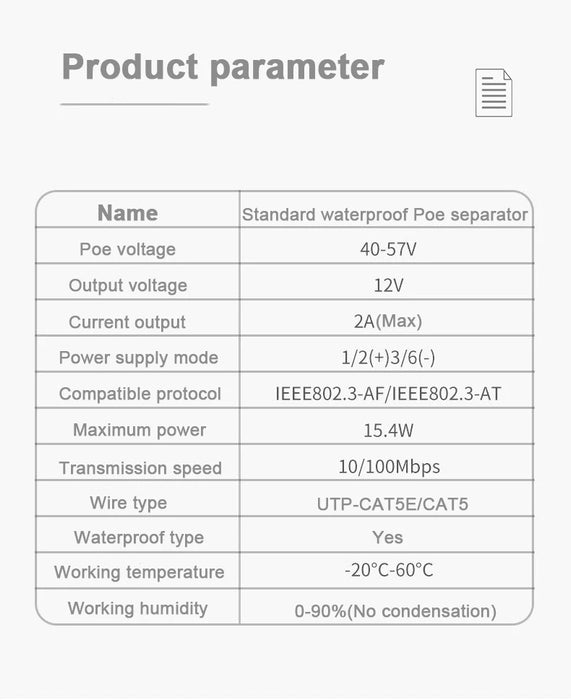

Installation & specs

The IP65 waterproof box is designed for outdoor use; it supports UTP CAT5/5E/6 cabling and works in temperatures from -20°C to 60°C with 0–90% humidity (no condensation). For long service life, allow space for heat dissipation and connect the ground correctly; follow standard installation practices to preserve the waterproof seal.

• Supports IEEE 802.3at and compatible with 802.3af
• Wide input voltage: 40–57V DC
• Selectable output: 12V 1.2A or 12V 4A

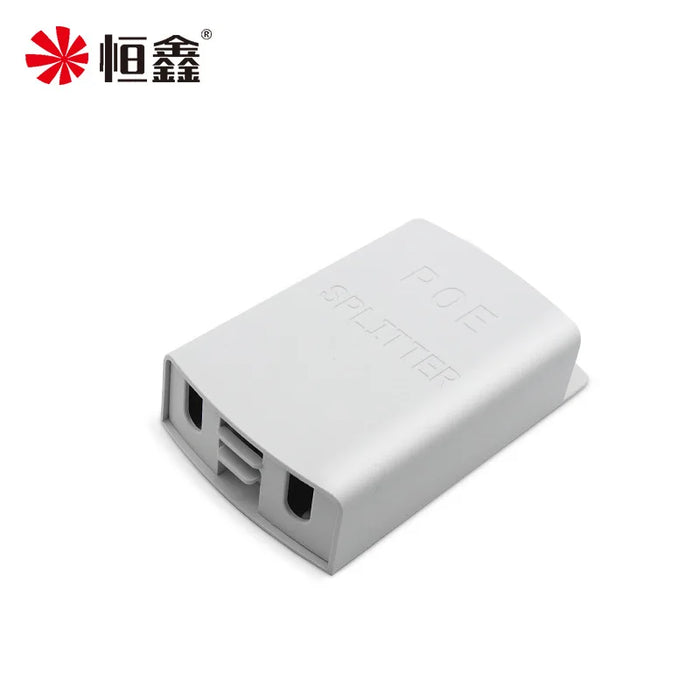

• Outdoor IP65 waterproof enclosure
• 10/100Mbps; suitable for CAT5/5E/6
